Smooth Capsule Slip Ring 18 Circuit LPC-18F

Name: Smooth Capsule Slip Ring 18 Circuit LPC18F
Brand: JINPAT
Price: 1 USD

Wholesale Smooth Capsule Slip Ring 18 Circuit LPC-18F from china suppliers

Brand Name : JINPAT

Model Number : LPC-18F

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 pieces/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Circuits : 18

Voltage : 240V

Current rating : 2A per wire

Contact material : gold to gold

Contact Now

Smooth Capsule Slip Ring With Flange 240 Voltage And 2A Per Wire Long Life

The LPC-18F capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The slip ring with18 wires and compact body size .Using a 90° V-groove ring design for each ring, the LPC-18A provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12, 18 circuit modesl.

Benefits

Certification: ISO9001, FCC, CE, BV Class, GJB, etc.
18 circuits @ 2A, 0-300rpm, with mounting flange
Gold-Gold contact

Specifications
Operating Speed	0-200 rpm
Number of Circuits	18
Voltage	240 VAC/DC
Current Rating	2 amps per circuit
Temperature Range	-20℃ to +60℃
Contact Material	Gold to Gold
Lead Size	28# silver plated copper
Lead Length	Standard 250 mm (9.843inch)
Dielectric Strength	≥200 VAC @50Hz, between each circuit
Insulation Resistance	50 MΩ @ 500 VDC
Electrical Noise	30mΩ Min

Smooth Capsule Slip Ring 18 Circuit LPC-18F

Product Tags:

compact slip ring

mini slip ring

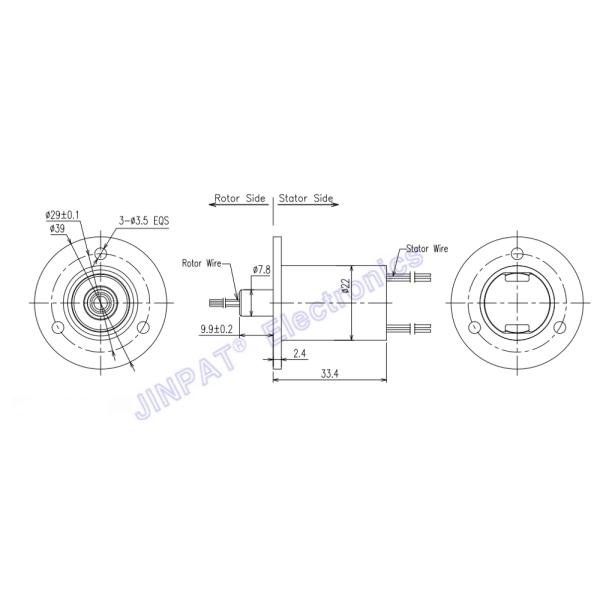

Smooth Capsule Slip Ring 18 Circuit LPC-18F Images
