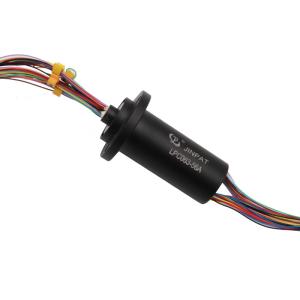

DC 240V Capsule Slip Ring 56 Circuits 2A Electrical Rotary Joint
The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.
Product parameter table
| Electrical & Electronics |
Mechanical |
Enviromental |
| Circuits |
56 CKT |
Rotating
Speed |
0-300rpm or higher |
Temperature |
Industrial: -20℃~+60℃ |
| 56×2A |
Military: -50℃~+80℃ |
| Voltage |
240V VC/DC |
Contact
Material |
Precious Metal |
Humidity |
60%RH or higher |
Housing
Material |
Aluminum Alloy |
Protection
Grade |
/ |
| Dielectric Strength |
≥500VAC@50Hz(P)
≥100VAC@50Hz(S) |
Torque |
≤0.88 g.m
(for reference) |
Others |
Insulation
Resistance |
≥100MΩ@500VDC(P)
≥10MΩ@100VDC(S) |
Wire Type |
AWG30#
or others |
Life Span |
Customizable |
Dynamic Resistance
Fluctuation Value |
≤35mΩ |
Wire Length |
250mm(optional) |
JINPAT LPC063-56A compact size slip ring shares the same number of channels with LPC-56A. The differences between the two model are basically their sizes and some properties. LPC063-56A capsule slip ring is shorter than LPC-56A, the former is only 63mm. Since it has a relatively smaller size at large, the rated voltage of LPC063-56A is 110V while the LPC-56, 220V. Meanwhile the rated current is lowered with a smaller insulation strength, which is 1.5A for each channel. If you are looking for capsule slip ring with powerful transmission capacity, JINPAT is the right company you should turn to. Contact us for more slip ring models catalogue.
