15A Aluminum Alloy rotary Slip Ring Electrical Connector 38.1mm 24 Circuits

  • 1
  • 2
  • 3

Brand Name : JINPAT

Model Number : LPT038-2415

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 pieces /Week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Operating Speed : 1~500RPM

Working Humidity : 60%RH

Voltage Rating : 240VAC/DC

Inner Diameter : 38.1mm

Contact Material : Precious metal

Circuits : 24*15A

Current(A) : 2A/5A/10A

Contact Now

15A Aluminum Alloy rotary Slip Ring Electrical Connector 38.1mm 24 Circuits

The LPT038-02E3 signal module slip ring provides an economical, readily available solution when a compact through-bore configuration is required. Signal module design can reduce the length of the slip ring and save installation room.The Ethernet through-bore slip ring is a rotating assembly used to transfer power, control circuits, or data (analog / digital) from stationary inlets to rotating outlets.

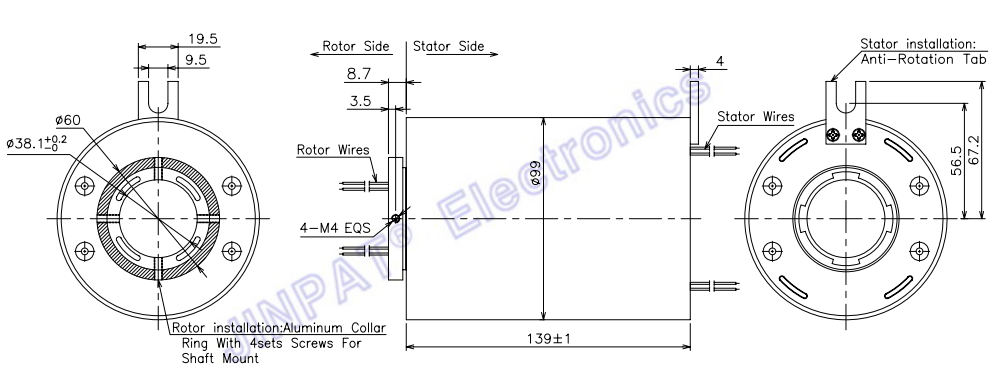

Dimension
15A Aluminum Alloy rotary Slip Ring Electrical Connector 38.1mm 24 Circuits

Compact Through Bore Slip Ring Options

  • Placement of custom circuitry directly onto the unit
  • Custom mechanical integration features
  • Addition of special components
  • The inclusion of coaxial and miniature data bus cables

Specification
Circuits 1-24 circuits
Operating Speed 0-300rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH
Electrical:
Voltage Rating 240VAC/DC
Current Rating For various signals
Dielectric Strength 1000VAC@50Hz between each circuit
Insulation Resistance 500MΩ@ 500VDC
Electrical Noise ≤70mΩ (50 rpm)
Mechanical:
Contact Material Precious metal
Lead Wire Size /
Lead Wire Length /
Housing Material Aluminum alloy
Torque /
Protection /


The operating life of the unit depends upon temperature, rotation speed, and environment.
The operating life ≥50,000,000 runs ref.


Application Picture

15A Aluminum Alloy rotary Slip Ring Electrical Connector 38.1mm 24 Circuits
